Варисторы MYG20Kestar Electronic Co. Ltd |

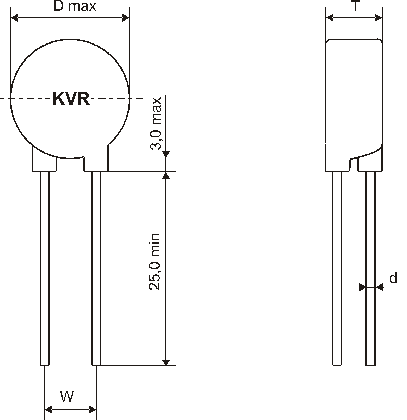

20D series (диаметр 20мм) |
| Тип |
Параметры
(25°C) |
Максимальные величины
(85°C) |
| Классификационное напряжение(1мA DC) |
Ограничивающие напряжение
(8/20мкс) |
Ёмкость тип. |
Длительное напряжение |
Энергия (Дж) |
Пиковый ток
(8/20мкс) |
| мин., В |
VN(DC), В |
макс. ,В |
Vc, В |
Ip, А |
F=1кГц,пФ |
VRMS |
VDC |
WTM, Дж |
ITM, kA |
| VM(AC), В |
VM(DC), В |
10/1000мкс |
2мс |
| MYG20-180 |
15,6 | 18 | 20,5 | 36 | 20 | 40000 |
11 | 14 | 13 | 12 | 3000 |
| MYG20-220 |
20 | 22 | 25 | 43 | 20 | 30000 |
14 | 18 | 14 | 16 | 3000 |
| MYG20-270 |
24 | 27 | 30,5 | 53 | 20 | 24500 |
17 | 22 | 17 | 19 | 3000 |
| MYG20-330 |
29 | 33 | 37 | 65 | 20 | 20000 |
20 | 26 | 21 | 24 | 3000 |
| MYG20-390 |
35 | 39 | 43 | 77 | 20 | 13800 |
25 | 31 | 25 | 28 | 3000 |
| MYG20-470 |
42 | 47 | 52 | 93 | 20 | 13500 |
30 | 38 | 30 | 34 | 3000 |
| MYG20-560 |
50 | 56 | 62 | 110 | 20 | 12200 |
35 | 45 | 36 | 41 | 3000 |
| MYG20-680 |
61 | 68 | 75 | 135 | 20 | 11500 |
40 | 56 | 44 | 49 | 3000 |
| MYG20-820 |
74 | 82 | 90 | 140 | 100 | 8200 |
50 | 65 | 40 | 56 | 10000 |
| MYG20-101 |
90 | 100 | 110 | 165 | 100 | 8000 |
60 | 81 | 50 | 72 | 10000 |
| MYG20-121 |
108 | 120 | 132 | 200 | 100 | 5500 |
75 | 100 | 60 | 88 | 10000 |
| MYG20-151 |
135 | 150 | 165 | 250 | 100 | 4200 |
95 | 125 | 75 | 106 | 10000 |
| MYG20-181 |
163 | 180 | 198 | 300 | 100 | 3500 |
115 | 150 | 84 | 130 | 10000 |
| MYG20-201 |
185 | 200 | 225 | 340 | 100 | 2300 |
130 | 170 | 100 | 150 | 10000 |
| MYG20-221 |
198 |
220 |
242 |
360 |
100 |
2200 |
140 |
180 |
110 |
160 |
10000 |
| MYG20-241 |
216 |
240 |
264 |
395 |
100 |
2200 |
150 |
200 |
120 |
170 |
10000 |
| MYG20-271 |
255 |
270 |
303 |
455 |
100 |
2100 |
175 |
225 |
135 |
190 |
10000 |
| MYG20-301 |
276 |
300 |
330 |
500 |
100 |
1800 |
195 |
250 |
148 |
216 |
10000 |
| MYG20-331 |
297 |
330 |
363 |
550 |
100 |
1750 |
210 |
275 |
160 |
230 |
10000 |
| MYG20-361 |
326 |
360 |
396 |
595 |
100 |
1700 |
230 |
300 |
180 |
270 |
10000 |
| MYG20-391 |
354 |
390 |
432 |
650 |
100 |
1400 |
250 |
320 |
195 |
300 |
10000 |
| MYG20-431 |
389 |
430 |
473 |
710 |
100 |
1350 |
275 |
350 |
215 |
325 |
10000 |
| MYG20-471 |
425 |
470 |
517 |
775 |
100 |
1200 |
300 |
385 |
250 |
350 |
10000 |
| MYG20-511 |
459 |
510 |
561 |
845 |
100 |
1050 |
320 |
410 |
273 |
385 |
10000 |
| MYG20-561 |
509 | 560 | 610 | 915 | 100 |
850 |
350 |
460 |
273 |
390 |
10000 |
| MYG20-621 |
558 |
620 |
682 |
1025 |
100 |
570 |
385 |
505 |
273 |
410 |
10000 |
| MYG20-681 |
612 |
680 |
746 |
1120 |
100 |
550 |
420 |
560 |
273 |
430 |
10000 |
| MYG20-751 |
675 |
750 |
825 |
1240 |
100 |
530 |
460 |
615 |
300 |
450 |
10000 |
| MYG20-781 |
702 |
780 |
858 |
1290 |
100 |
530 |
485 |
640 |
315 |
460 |
10000 |
| MYG20-821 |
738 |
820 |
900 |
1355 |
100 |
530 |
510 |
670 |
325 |
470 |
10000 |
| MYG20-911 |
819 |
910 |
1000 |
1500 |
100 |
480 |
550 |
745 |
360 |
510 |
10000 |
| MYG20-102 |
900 |
1000 |
1100 |
1650 |
100 |
480 |
625 |
825 |
400 |
565 |
10000 |
| MYG20-112 |
990 |
1100 |
1210 |
1815 |
100 |
400 |
680 |
895 |
440 |
620 |
10000 |
| MYG20-182 |
1620 | 1800 | 1980 | 2970 |
100 |
250 |
1000 |
1465 |
720 |
860 |
10000 |
 |
|
|
